Description

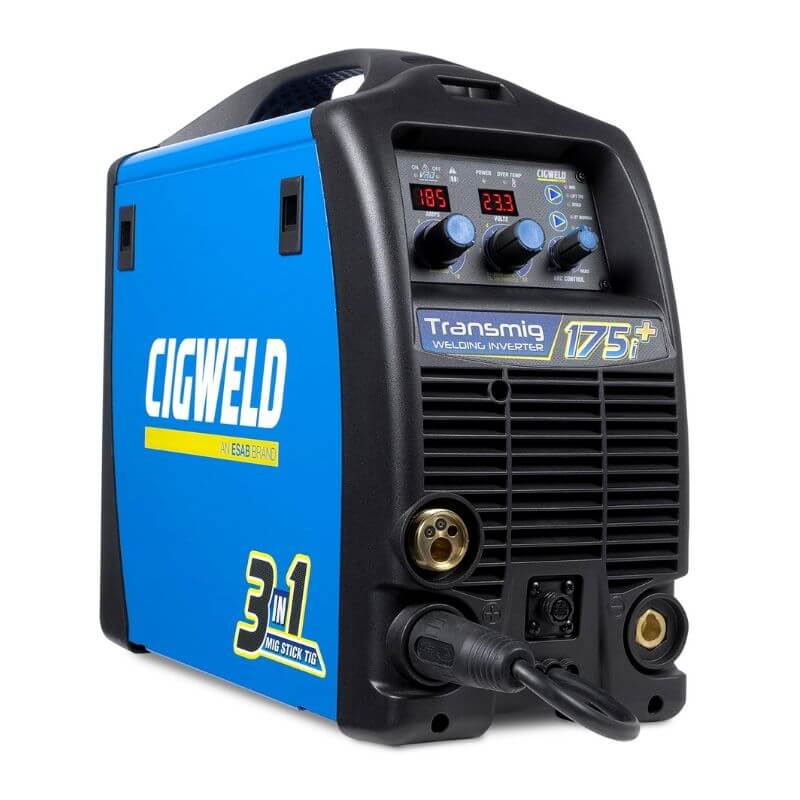

Cigweld Transmig 175i Multi Process Inverter
Features:
- Is a self contained single phase multi process welding inverter that is capable of performing GMAW/FCAW (Mig), MMAW (Stick) and GTAW (Lift TIG) welding processes.
- The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in stick mode only), digital voltage and amperage meters, and a host of other features in order to satisfy the broad operating needs of the modern welding professional.
| PROCESSES | MIG (GMAW/FCAW) | STICK (MMAW) LOFT TIG (GTAW) |
| SUPPLY VOLTAGE | 240 VOLT AC ±15%, 50/60 HZ (15A PLUG) |
| CURRENT RANGE | 10 – 210 AMPS |
| DUTY CYCLE | MIG(GMAW/FCAW):25% @175A,22.8V(40C, 10MINS) STICK(MMAW):20%@175A, 27.0V(40C, 10MINS) TIG(GTAW):25% @ 175A, 17.0V(40C, 10MINS) |
| RECOMMENDED GENERATOR | 9KVA FOR MAX WELDING CURRENT |
| WEIGHT | POWER SOURCES: 14KG; PLANT(PACKED): 23.0KG |
